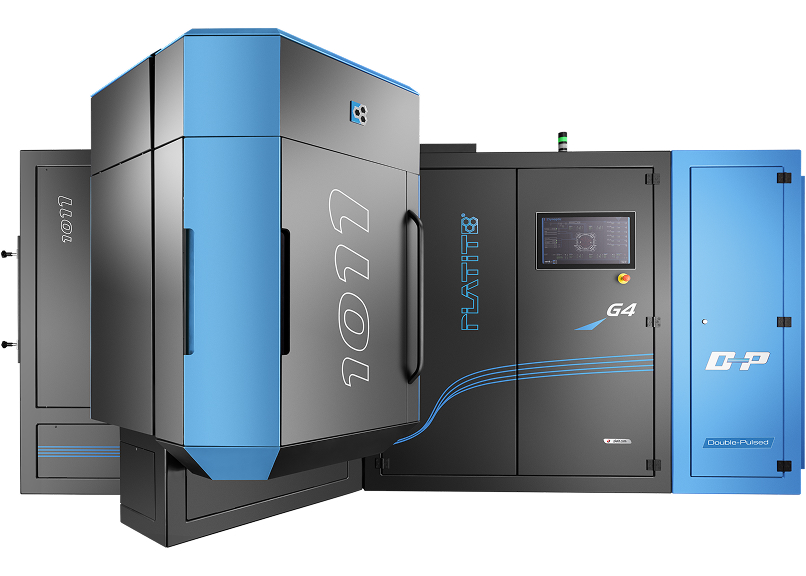

PL1011 SAT G4
The PL1011 SAT (Supreme Arc Technology) with revolutionary double-pulsed technology features four planar arc cathodes and eight arc power supplies, setting a new standard in PVD coating. As the next generation of PLATIT’s robust coating units, it serves as the backbone of any high-volume coating center.
Double-Pulsed technology
The PL1011 SAT with revolutionary double-pulsed technology sets a new benchmark in PVD coating. Traditional arc evaporation, while enabling high deposition rates through high currents, often leads to rougher coatings. In contrast, the PL1011 SAT achieves a significantly smoother surface with minimal droplet formation.
What sets this technology apart is its ability to generate a highly dense, strongly ionized plasma by combining advanced high-current medium-frequency power sources for pulsed arc with improved cathode technology for superior arc steering.
The result is a dense, high-quality coating with reduced roughness, delivering outstanding surface quality. This advanced double-pulsed technology offers exceptional efficiency, lower energy consumption, and shorter batch times thanks to enhanced evaporation rates. It also ensures a more uniform coating thickness across the entire height and optimizes target utilization.
Technology
PL1011 SAT G4
- 4 x Planar ARC cathode with 8 x ARC power supplies in both DC and pulsed modes
- Engineered for customers who prioritize both process reliability and high deposition rates, the PL1011 SAT delivers premium-quality coatings at low costs per tool. Its industrial design maximizes service accessibility, making maintenance efficient and user-friendly.
